Catalan Number


CatalanPolygons

The Catalan numbers C_n, indexed by nonnegative integers n, arise in tree enumeration problems of the type, "In how many ways can a regular n-gon be divided into n-2 triangles if different orientations are counted separately?" (Euler's polygon division problem). For n>=3, the solution is the Catalan number C_(n-2) (Pólya 1956; Dörrie 1965; Honsberger 1973; Borwein and Bailey 2003, pp. 21-22), as graphically illustrated above (Dickau).

Catalan numbers are commonly denoted C_n (Graham et al. 1994; Stanley 1999b, p. 219; Pemmaraju and Skiena 2003, p. 169; this work) or c(n) (Goulden and Jackson 1983, p. 111), and less commonly u_n (van Lint and Wilson 1992, p. 136).

Catalan numbers are implemented in the Wolfram Language as CatalanNumber[n].

The first few Catalan numbers for n=1, 2, ... are 1, 2, 5, 14, 42, 132, 429, 1430, 4862, 16796, ... (OEIS A000108).

CatalanNumber

Explicit formulas for C_n include

C_n=1/(n+1)(2n; n)
(1)
=((2n)!)/((n+1)!n!)
(2)
=(2^n(2n-1)!!)/((n+1)!)
(3)
=(4^nGamma(n+1/2))/(sqrt(pi)Gamma(n+2))
(4)
=(-1)^n2^(2n+1)(1/2; n+1)
(5)
=1/n(2n; n-1)
(6)
=_2F_1(1-n,-n;2;1),
(7)

for n>=0, except that the expression containing 1/n requires n>=1, where (n; k) is a binomial coefficient, n! is a factorial, n!! is a double factorial, Gamma(z) is the gamma function, and _2F_1(a,b;c;z) is a hypergeometric function.

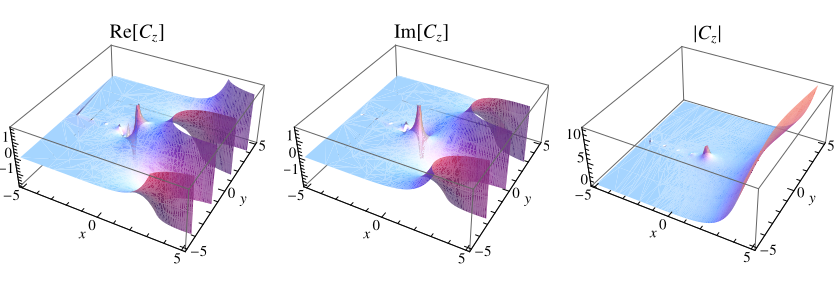

CatalanNumberReIm
CatalanNumberContours

The Catalan numbers may be generalized to the complex plane, as illustrated above.

Sums giving C_n include

C_n=sum_(k=0)^(n-1)C_kC_(n-k-1)
(8)
=sum_(k=0)^(n-1)C_k2^(n-2k-1)(n-1; 2k)
(9)
=1/nsum_(k=0)^(n-1)C_(n-k-1)(2k+1; k+1)
(10)
=sum_(k=0)^(n)(-1)^k2^(n-k)(n; k)(k; |_k/2_|)
(11)
=sum_(k=0)^(|_n/2_|)[(n-2k+1)/(n-k+1)(n; n-k)]^2,
(12)

where the first three sums require n>=1, the last two also hold at n=0, and |_x_| is the floor function. A product for C_n is given by

 C_n=1/((n+1)!)product_(k=1)^n(4k-2).
(13)

The Catalan numbers are the inverse binomial transform of the Riordan numbers.

Sums involving C_n include the generating function

2/(1+sqrt(1-4x))=sum_(n=0)^(infty)C_nx^n
(14)
=1+x+2x^2+5x^3+14x^4+...
(15)

for |x|<=1/4 (OEIS A000108), and the exponential generating function

e^(2x)[I_0(2x)-I_1(2x)]=sum_(n=0)^(infty)C_n(x^n)/(n!)
(16)
=1+x+x^2+5/6x^3+7/(12)x^4+7/(20)x^5+...
(17)

for every complex number x (OEIS A144186 and A144187), where I_n(x) is a modified Bessel function of the first kind, as well as

sum_(n=1)^(infty)(C_n)/(4^n)=1
(18)
sum_(n=0)^(infty)(C_nx^(2n))/((2n)!)=(I_1(2x))/x,
(19)

where the quotient in the second identity has limiting value 1 at x=0. That identity holds for every complex number x.

The asymptotic form for the Catalan numbers is

 C_x∼(4^x)/(sqrt(pi))(x^(-3/2)-9/8x^(-5/2)+(145)/(128)x^(-7/2)+...)
(20)

as the real number x->infty (Vardi 1991, Graham et al. 1994).

The numbers of decimal digits in C_(10^n) for n=0, 1, ... are 1, 5, 57, 598, 6015, 60199, 602051, 6020590, ... (OEIS A114466). The ratios of these digit counts to 10^n converge to log_(10)4=0.602059991... (OEIS A114493).

A recurrence relation for C_n is obtained from

 (C_(n+1))/(C_n)=(2(2n+1))/(n+2),
(21)

so

 C_(n+1)=(2(2n+1))/(n+2)C_n.
(22)

Segner's recurrence formula (Segner 1761) gives the solution to Euler's polygon division problem

 E_n=E_2E_(n-1)+E_3E_(n-2)+...+E_(n-1)E_2.
(23)

With E_2=1 and the recurrence applied for n>=3, the solution is E_n=C_(n-2) for n>=2.

From the definition of the Catalan number, every prime divisor of C_n is less than 2n. On the other hand, C_n>2n-1 for n>=4. Therefore, C_3 is the largest Catalan prime, making C_2=2 and C_3=5 the only Catalan primes. (Of course, much more than this can be said about the factorization of C_n.)

The only odd Catalan numbers are those of the form C_(2^k-1) for integer k>=0. The first few are therefore 1, 1, 5, 429, 9694845, 14544636039226909, ... (OEIS A038003).

For integer k>=1, the odd Catalan number C_(2^k-1) ends in 5 unless the quinary (base 5) expansion of 2^k-1 uses only the digits 0, 1, and 2. Its first few final digits, starting at k=1, are 1, 5, 9, 5, 9, 5, 9, 7, 5, 5, 5, 5, 5, ... (OEIS A094389); the sequence also has initial value 1 at k=0. For 1<=k<=10^5, the exceptions to a final digit of 5 occur only at k=1, 3, 5, 7, and 8.

CatalanTrees

The Catalan number C_(n-1) counts the binary bracketings of n letters, for n>=1 (Catalan's problem). For n>=0, C_n counts Dyck paths with n upsteps and n downsteps, ballot problem sequences with n votes for each candidate in which the first candidate never trails, full ordered binary trees with n internal vertices, rooted plane trees with n edges, and noncrossing handshakes between n pairs of people at fixed cyclic positions around a round table. It also counts formal bracketings of an exponential expression with n+1 ordered operands and n exponentiation signs. Equivalently, these objects include mountains with n upstrokes and n downstrokes which never fall below their starting level, and trivalent planted planar trees with n internal trivalent vertices and n+1 leaves other than the plant.

For n>=1, C_n also counts the admissible diagonals across all positive-integral multiplicative frieze patterns with n+1 rows, including the two bounding rows of 1s, with horizontal position and direction fixed (Conway and Guy 1996, pp. 96-106; Stanley 1999b, pp. 231 and 269). The number of abstract flexagon configurations of order n in the Oakley-Wisner model is C_(n-1), for n>=2: these are ordered pairs of pats of total degree n, before configurations related by pinches or rotations are identified (Oakley and Wisner 1957).

A generalization of the Catalan numbers is defined by

_pd_k=1/k(pk; k-1)
(24)
=1/((p-1)k+1)(pk; k)
(25)

for integers p>=2 and k>=1, with _pd_0=1 (Klarner 1970, Hilton and Pedersen 1991). The usual Catalan numbers C_k=_2d_k are a special case with p=2. _pd_k gives the number of full ordered p-ary trees with k internal nodes, the number of ways of associating k applications of a given p-ary operator, the number of ways of dividing a convex polygon with (p-1)k+2 sides into k interior-disjoint (p+1)-gons with nonintersecting polygon diagonals, and the number of p-good paths from (0, -1) to (k,(p-1)k-1) (Hilton and Pedersen 1991).

A further generalization is obtained as follows. Let p be an integer >1, let P_k=(k,(p-1)k-1) with k>=0, and let q be an integer with q<=p-1. Then define _pd_(q0)=1 and let _pd_(qk) be the number of p-good paths from (1, q-1) to P_k (Hilton and Pedersen 1991). For k>=1, formulas for _pd_(qk) include the generalized Jonah formula

 (n-q; k-1)=sum_(i=1)^k_pd_(qi)(n-pi; k-i)
(26)

and the explicit formula

 _pd_(qk)=(p-q)/(pk-q)(pk-q; k-1).
(27)

A recurrence relation is given by

 _pd_(qk)=sum_(i,j)_pd_(p-r,i)_pd_(q+r,j),
(28)

where r is a fixed positive integer with q<p-r, k>=1, and the sum is over positive integers i,j with i+j=k+1 (Hilton and Pedersen 1991).
