Butterfly Theorem


ButterflyTheorem

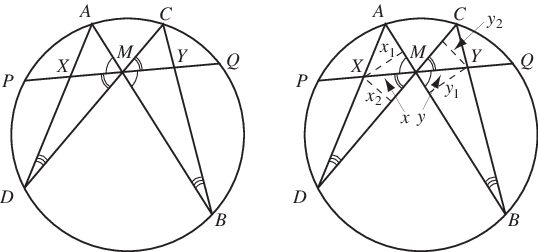

Given a chord PQ of a circle, draw any other two chords AB and CD passing through its midpoint. Call the points where AD and BC meet PQ X and Y. Then M is also the midpoint of XY. There are a number of proofs of this theorem, including those by W. G. Horner, Johnson (1929, p. 78), and Coxeter (1987, pp. 78 and 144). The latter concise proof employs projective geometry.

The following proof is given by Coxeter and Greitzer (1967, p. 46). In the figure at right, drop perpendiculars x_1 and y_1 from X and Y to AB, and x_2 and Y_2 from X and Y to CD. Write a=PM=MQ, x=XM, and y=MY, and then note that by similar triangles

 x/y=(x_1)/(y_1)=(x_2)/(y_2)
(1)
 (x_1)/(y_2)=(AX)/(CY)
(2)
 (x_2)/(y_1)=(XD)/(YB),
(3)

so

(x^2)/(y^2)=(x_1)/(y_1)(x_2)/(y_2)=(x_1)/(y_2)(x_2)/(y_1)=(AX·XD)/(CY·YB)=(PX·XQ)/(PY·YQ)
(4)
=((a-x)(a+x))/((a+y)(a-y))=(a^2-x^2)/(a^2-y^2)=(a^2)/(a^2)=1,
(5)

so x=y. Q.E.D.
