Elliptic Integral of the First Kind


Let the elliptic modulus k satisfy 0<k^2<1, and the Jacobi amplitude be given by phi=amu with -pi/2<phi<pi/2. The incomplete elliptic integral of the first kind is then defined as

 u=F(phi,k)=int_0^phi(dtheta)/(sqrt(1-k^2sin^2theta)).
(1)

The elliptic integral of the first kind is implemented in the Wolfram Language as EllipticF[phi, m] (note the use of the parameter m=k^2 instead of the modulus k).

Letting

t=sintheta
(2)
dt=costhetadtheta
(3)
=sqrt(1-t^2)dtheta,
(4)

Equation (1) can be written as

F(phi,k)=int_0^(sinphi)1/(sqrt(1-k^2t^2))(dt)/(sqrt(1-t^2))
(5)
=int_0^(sinphi)(dt)/(sqrt((1-k^2t^2)(1-t^2))).
(6)

Letting

v=tantheta
(7)
dv=sec^2thetadtheta=(1+v^2)dtheta,
(8)

then the integral can also be written as

 F(phi,k)=int_0^(tanphi)(dv)/(sqrt((1+v^2)(1+k^('2)v^2))),
(9)

where k^('2)=1-k^2 is the complementary elliptic modulus.

The inverse function of F(phi,k) is given by the Jacobi amplitude

 F^(-1)(u,k)=phi=am(u,k).
(10)

The integral

 I=1/(sqrt(2))int_0^(theta_0)(dtheta)/(sqrt(costheta-costheta_0)),
(11)

which arises in computing the period of a pendulum, is also an elliptic integral of the first kind. Use

costheta=1-2sin^2(1/2theta)
(12)
sin(1/2theta)=sqrt((1-costheta)/2)
(13)

to write

sqrt(costheta-costheta_0)=sqrt(1-2sin^2(1/2theta)-costheta_0)
(14)
=sqrt(1-costheta_0)sqrt(1-2/(1-costheta_0)sin^2(1/2theta))
(15)
=sqrt(2)sin(1/2theta_0)sqrt(1-csc^2(1/2theta_0)sin^2(1/2theta)),
(16)

so

 I=1/2int_0^(theta_0)(dtheta)/(sin(1/2theta_0)sqrt(1-csc^2(1/2theta_0)sin^2(1/2theta))).
(17)

Now let

 sin(1/2theta)=sin(1/2theta_0)sinphi,
(18)

so the angle theta is transformed to

 phi=sin^(-1)[(sin(1/2theta))/(sin(1/2theta_0))],
(19)

which ranges from 0 to pi/2 as theta varies from 0 to theta_0. Taking the differential gives

 1/2cos(1/2theta)dtheta=sin(1/2theta_0)cosphidphi,
(20)

or

 1/2sqrt(1-sin^2(1/2theta_0)sin^2phi)dtheta=sin(1/2theta_0)cosphidphi.
(21)

Plugging this in gives

I=int_0^(pi/2)1/(sqrt(1-sin^2(1/2theta_0)sin^2phi))(sin(1/2theta_0)cosphidphi)/(sin(1/2theta_0)sqrt(1-sin^2phi))
(22)
=int_0^(pi/2)(dphi)/(sqrt(1-sin^2(1/2theta_0)sin^2phi))
(23)
=K(sin(1/2theta_0)),
(24)

so

I=1/(sqrt(2))int_0^(theta_0)(dtheta)/(sqrt(costheta-costheta_0))
(25)
=K(sin(1/2theta_0)).
(26)

Making the slightly different substitution phi=theta/2, so dtheta=2dphi leads to an equivalent, but more complicated expression involving an incomplete elliptic integral of the first kind,

I=21/(sqrt(2))1/(sqrt(2))csc(1/2theta_0)int_0^(theta_0)(dphi)/(sqrt(1-csc^2(1/2theta_0)sin^2phi))
(27)
=csc(1/2theta_0)F(1/2theta_0,csc(1/2theta_0)).
(28)

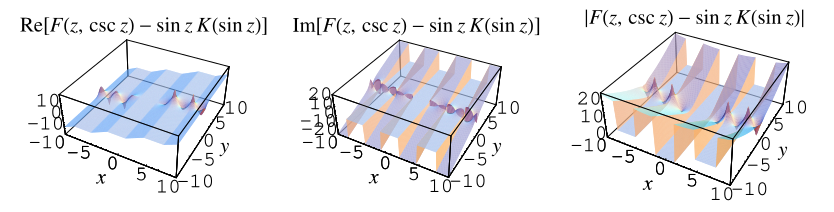

EllipticFReImEllipticFContours

Therefore, the identity

 F(z,cscz)=sinzK(sinz)
(29)

holds over at least some region of the complex plane. The region of applicability is -pi/2<R[z]<pi/2, which is shown above.

The elliptic integral of the first kind satisfies

 F(-phi,k)=-F(phi,k).
(30)

Special values of F(phi,k) include

F(0,k)=0
(31)
F(1/2pi,k)=K(k),
(32)

where K(k) is known as the complete elliptic integral of the first kind.
